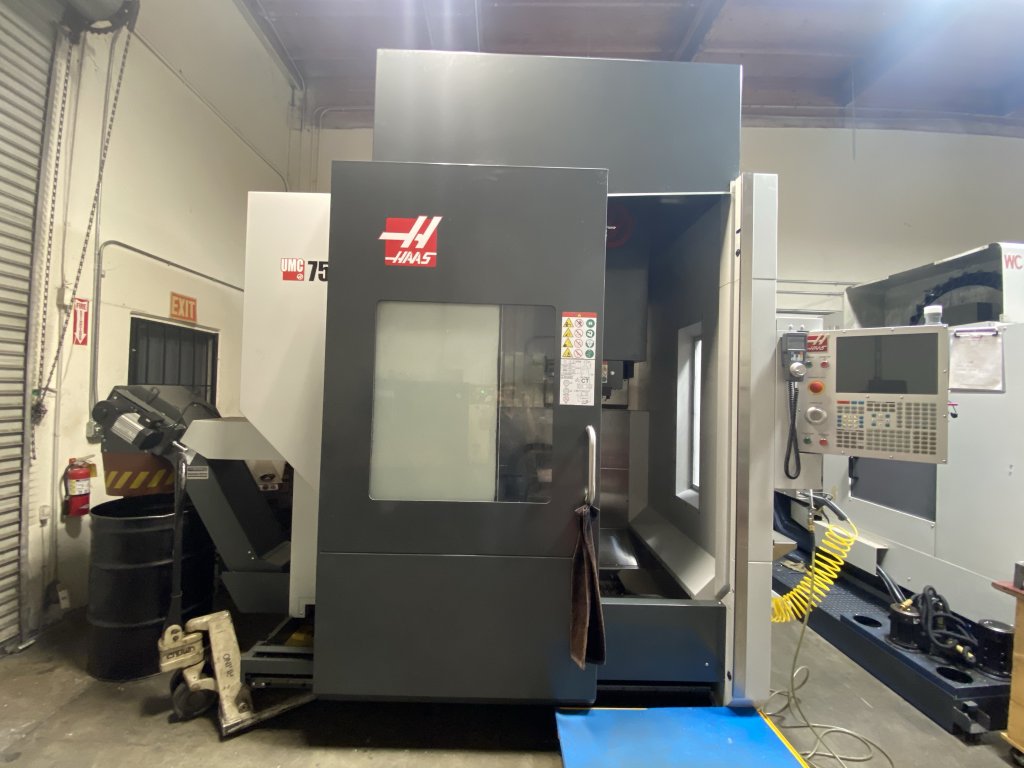

HAAS UMC-750 5-Axis
The Haas UMC-750 is a versatile 5-axis universal machining center with 30" x 20" x 20" travels and an integrated dual-axis trunnion table. The machine is equipped with an inline direct-drive 40-taper spindle (8100 or 12,000 rpm), and comes standard with a 40+1 tool side-mount tool changer.

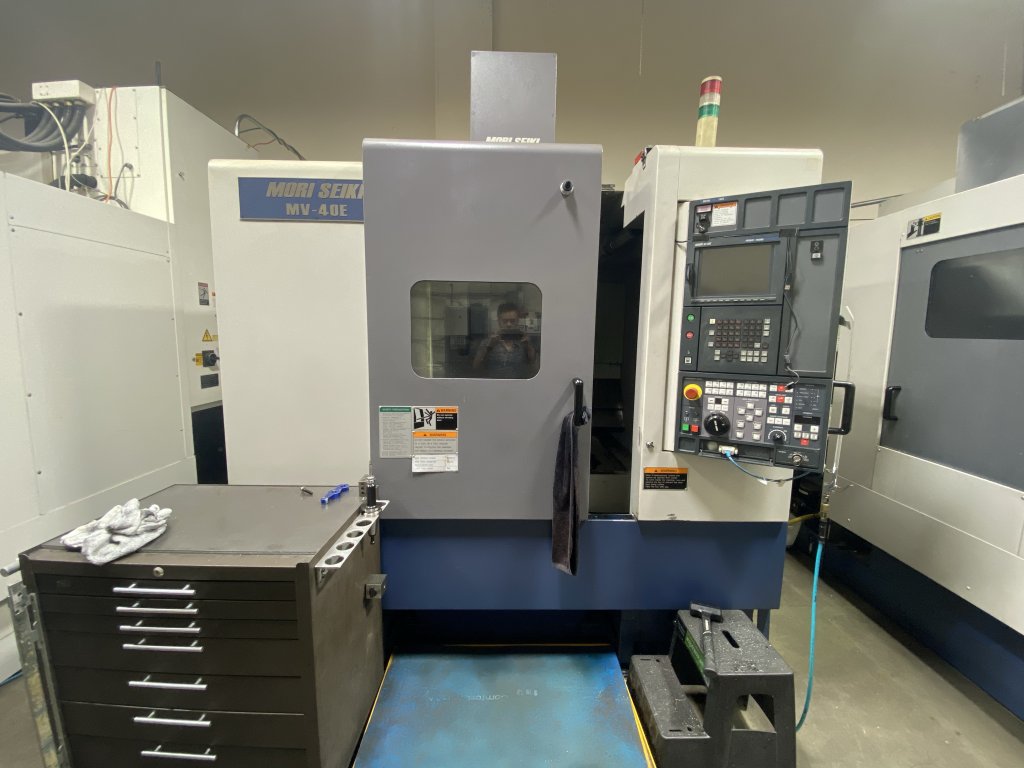

Mori Seiki MV-40E
Table size 35.4" x 17.7"
Travel (XYZ) 22" x 16.1" x 18.1"
Distance Spindle nose to table top 5.9" -24"
Max. weight on talbe 660 lbs
Max. spindle speed 8000 RPM

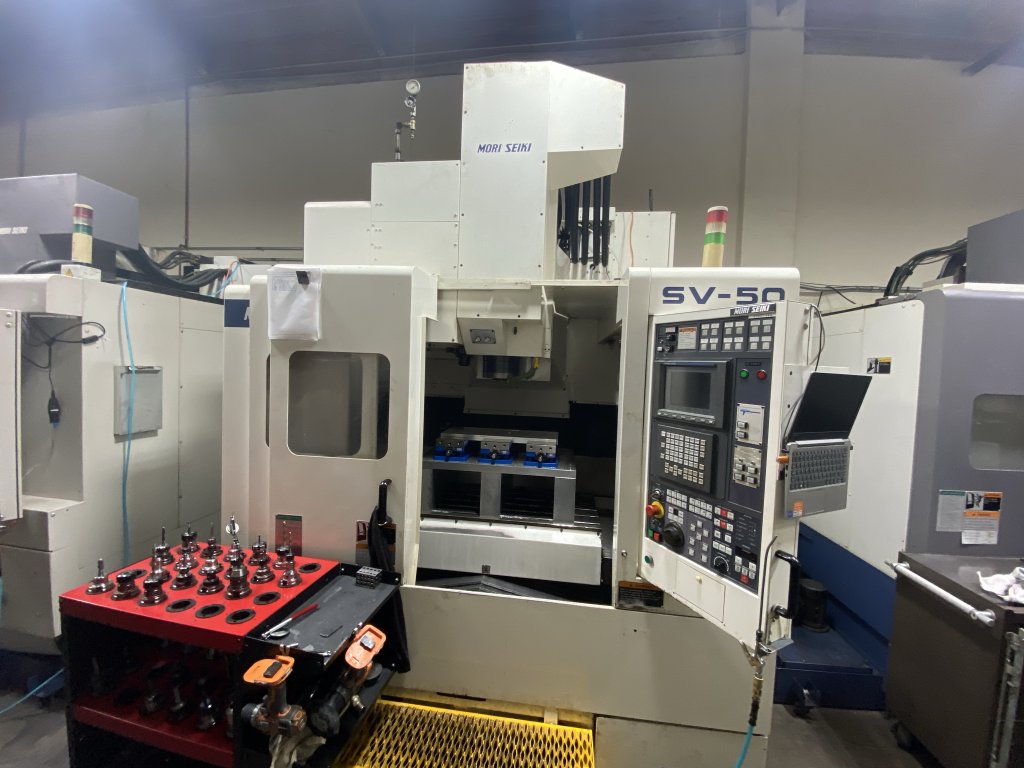

Mori Seiki SV-50
Control CNC (Fanuc 16MC)
X 31.5 inch
Y 20.1 inch
Z 20.1 inch
Power 30 HP
RPM 10K RPM
ATC 40
TableW 43.3 inch
TableL 23.6 inch
Taper CT40

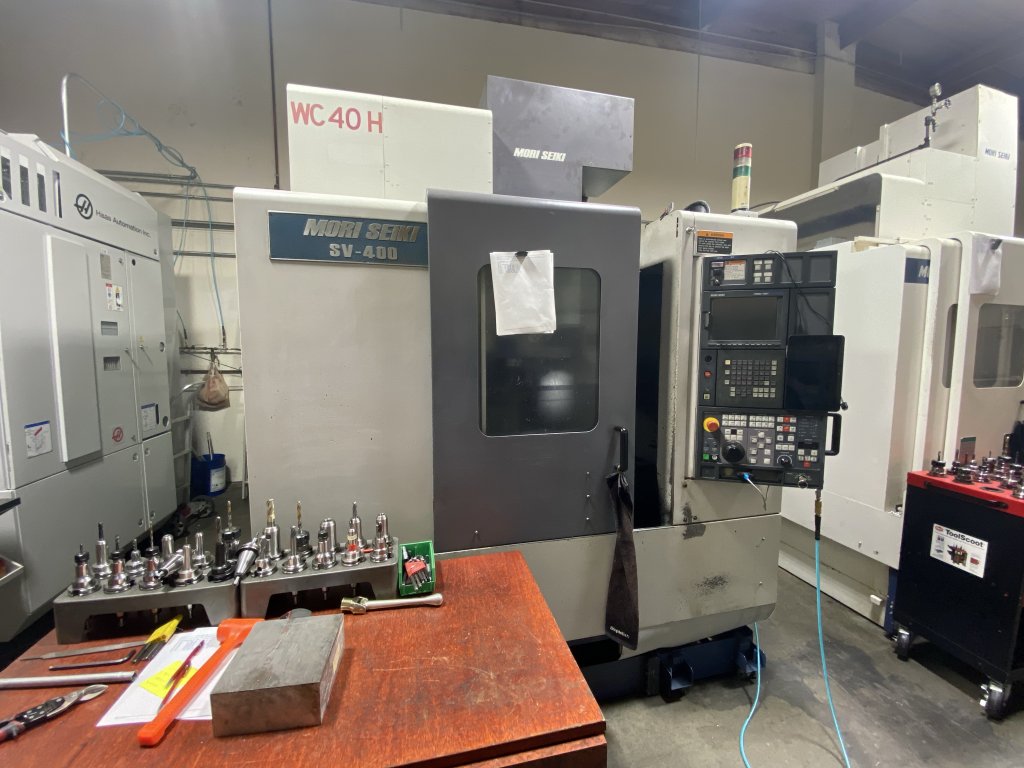

Mori Seiki SV-400
Control CNC (Mori MSC-518 / Fanuc 18i)
Lower 19
X 23.6 inch
Y 16.9 inch
Z 18.1 inch
Power 30 hp
RPM 12000 rpm
ATC 30
Upper 39
TableW 19.7 inch
TableL 35.4 inch
Taper Cat 40

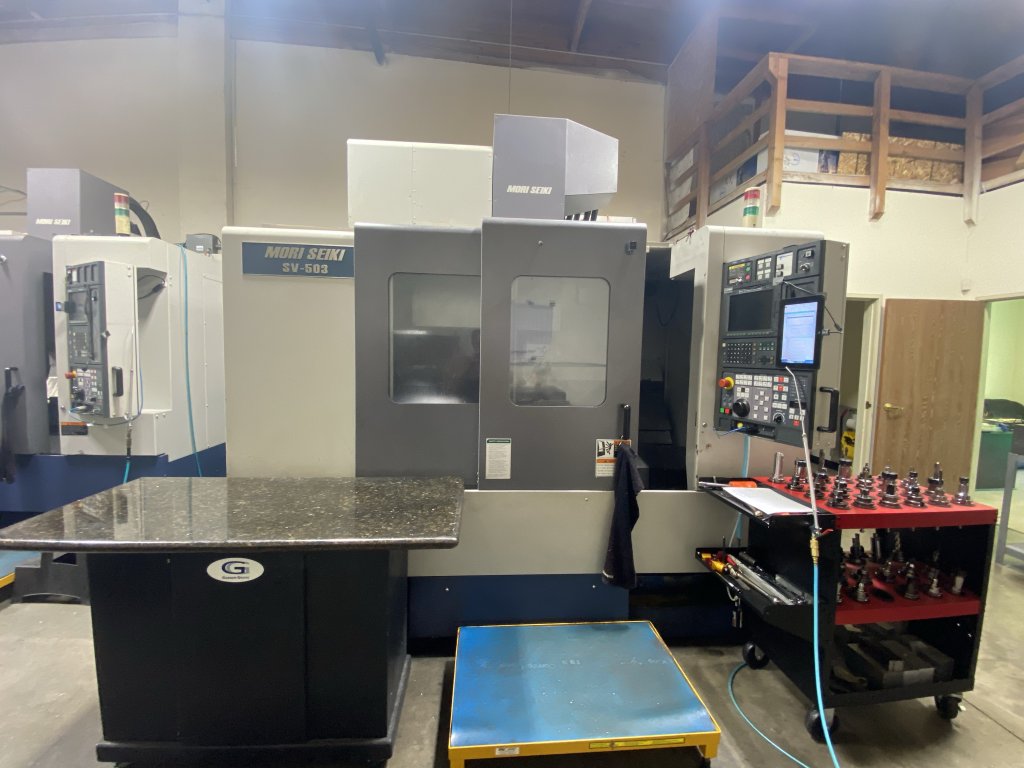

Mori Seiki SV-503
Travels:
X-Axis: 40.16″
Y-Axis: 20.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

Table:
Length: 52″
Width: 23.62″
Max Weight on Table: 2700 lbs

Spindle:
Taper Size: 40
Speed Range: 60 – 10,000 RPM
Spindle Power: 30 HP

Feed rates:
Rapid X,Y & Z: 1260 inch/P.M
Cutting Feedrate: 630″ inch/ P.M

Automatic Tool Changer:
40 Taper
Capacity: 30
Max Tool Weight: 31 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 4.90″
